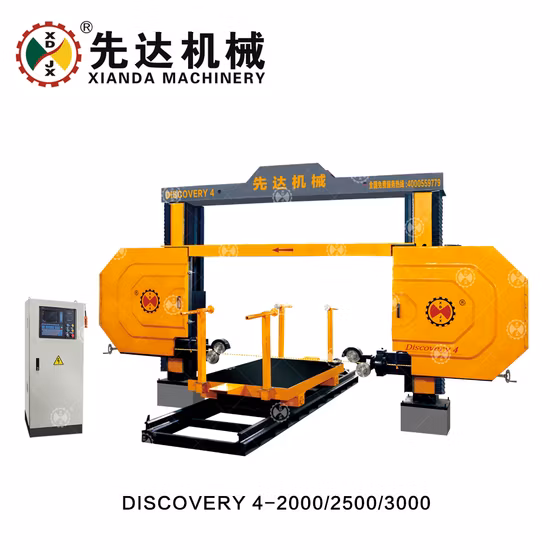

Easy Operation CNC Diamond Wire Saw Machine for Marble Granite Block

Basic Info.

Model NO.	CNC-2000
Control	CNC
Certification	API, CCC, SONCAP, GOST, ISO, CE, SGS
Water Consumption	4m3/H
Gross Weight	5000kg
Wire Speed	0-40m/S
Warranty Time	One Year
Color	White and Yellow
Main Motor	11kw
Outline Dimension	6500*6300*3800mm
Dimension of Worktable	2500*1300mm
Max Processing Size	3000*2500*1500mm
Transport Package	Load in a 20 Feet Container
Specification	6500*6300*3800mm
Trademark	Xianda
Origin	Jinjiang, Fujian, China
HS Code	84641090
Production Capacity	1000 Sets/Year

Product Description

#Easy Operation Diamond Wire Saw machine for Marble Granite Block
Xianda machinery
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.
Technical Parameter

Parameter	Unit	CNC-2000	CNC-2500	CNC-3000
Max processing size	mm	2000*3000*1500	2500*3000*1500	3000*3000*1500
Dimension of worktable	mm	2500*1300	2500*1300	2500*1300
Main motor	kw	7.5	7.5	7.5
Gross motor	kw	11	11	11
Outline dimension	mm	6800*6200*3800	7800*6200*3800	8800*6200*3800
Gross weight	kg	5000	5500	6000
Water consumption	m3/h	4	4	4

ExhibitionOur Service

* Training how to instal the machine, training how to use the machine.* Engineers available to service machinery overseas.* After-sales service 24 hour on line. If you have any problem,just conact our sales department,customer service department,etc at any time.
